ELECTRIC SYSTEM

MAIN COMPONENT

Motor

48v500W   rear motor

Frame

6061 Alloy Aluminum

with easy release connection

Tyres

26" x 4.00,Kenda mountain tire

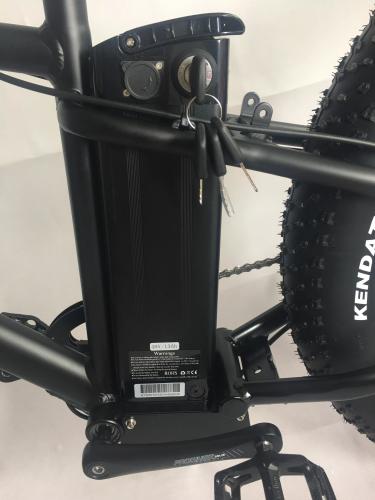

Battery

48V15Ah  China cell Li-ion Battery

Rim

Double Alloy Aluminum,

with electric protection circuit,Removable

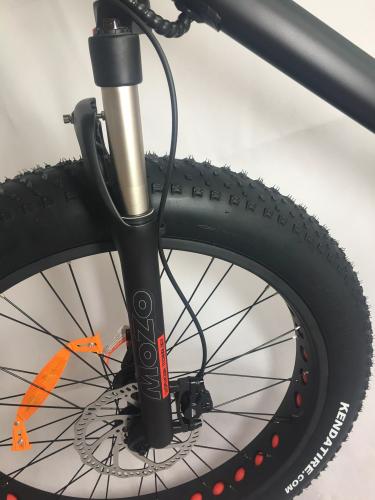

Fork

MOZO Mechanical aluminum alloy suspention outlock fork

Controller

Sine wave controller, high efficiency

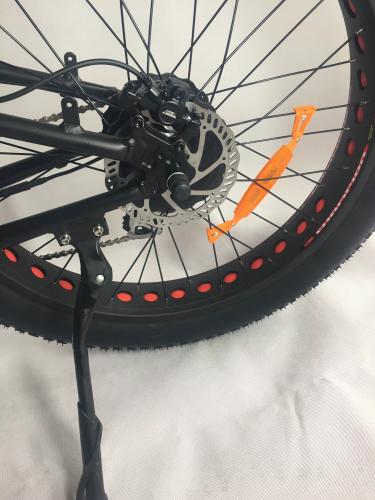

Front & rear Brake

Tektro mechanical Disc-brake (optional Tektro E350 or E500 hydraulic disc brake )

low noise & durable

Fender

optional plastic fender or aluminum alloy with color

Charger

100~240V, 50-60Hz,

Spokes

front 12G / rear13g Stainless steel

Plug as final market requirement

Derailleur

Shimano tourney 7 speed (optional Alivio 9 or Deore 10 speed )

Displayer

king meter LED display 1-3 level

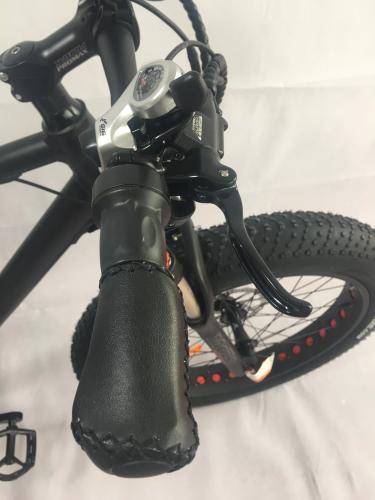

Handle Bar

Alloy aluminum

PAS

1:1 Pedal Assisted System

Front & rear light

Spanninga LED light

PERFORMANCE

Brake Level

Wuxing Alloy aluminum,power-off when braking with parking function

Speed

28-48Km/h

Chain

Rust resistant chain,KMC

Range

40-100km

Chain wheel

plastic steel 48T*170 mm,Prowheel ( aluminum alloy 38T crank +USD7 )

Max Load

120Kg

Saddle

Leather Soft comfortable   velo (black or brown color)

N.W / G.W

28kg / 36kg

Pedal

Alloy aluminum with reflector,  Wellgo

Carton Size

1600*3000*780mm

Color

matt black, white, red,blue,or optional others

Capacity

75pcs/20ft, 155pcs/40HQ

OEM

acceptable (add your logo on the bike and carton)
